[Shockproof] ANSI/ASME Flanged Rubber Bellow “DN150”

[Shockproof] ANSI/ASME Flanged Rubber Bellow “DN150”

The official website of Shanghai Songjiang Group introduces to you: Shockproof ANSI/ASME Flanged Rubber Bellow“DN150” information, Products supplied to many American customers, our factory equipped automatic production equipment and fatigue detection equipment, welcome to visit and investigate.

Shockproof ANSI/ASME Flanged Rubber Bellow Application Field:

• Oil & gas Industry
• Desalination Industry
• Chemical Industry
• Electrical transformers
• Motors
• Power generating stations
• Water treatment plants
• Sewage Treatment
• HVAC Systems etc

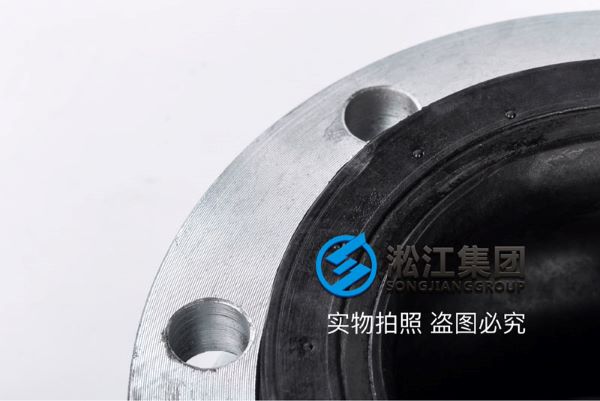

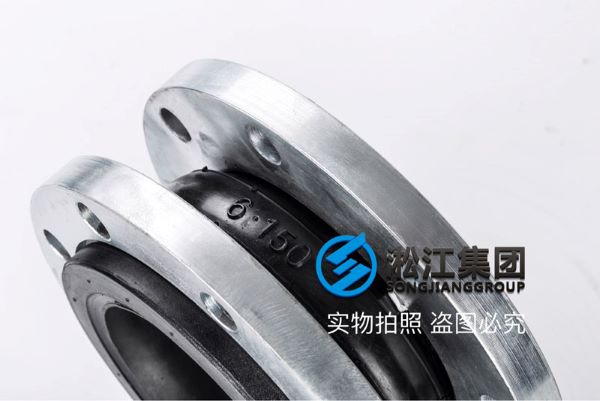

Name: Shockproof ANSI/ASME Flanged Rubber Bellow
Caliber: DN150 (6 inches)
Rubber: EPDM rubber (all EPDM rubber of Songjiang Group adopts Japan’s Mitsui 4045, the content is about 50%, with material certificate, content test report, and product test report and performance test from the National Type Test Center certificate, etc.)
Flange: Carbon steel cold galvanized
Advantages: shock absorption, noise reduction, compensation pipeline, deflectable, and displacement.
Warranty: 3 years
Installation length: 130mm (150mm)
Axial compression: 10mm
Axial stretch: 6mm
Lateral displacement: 12mm
Deflection angle: 6°
Standard: ANSI-150LB
Flange outer diameter: 280mm
Bolt hole center distance: 241.5mm
Bolt Diameter: 22mm
Number of bolt holes: 8
Pressure: 150LB (PN20)
Flange: Carbon Steel (Q235)
Medium: seawater, weak acid and alkali
Manufacturer: Shanghai Songjiang Shock Absorber Group Co., Ltd.
