Shanghai Songjiang Group [Patented] Ductile ANSI/ASME Flanged Rubber Bellow information, Which has applied for the appearance Design patent. The flange adopts a new design, lighter construction and more novel appearance.

[Patented] Ductile ANSI/ASME Flanged Rubber Bellow

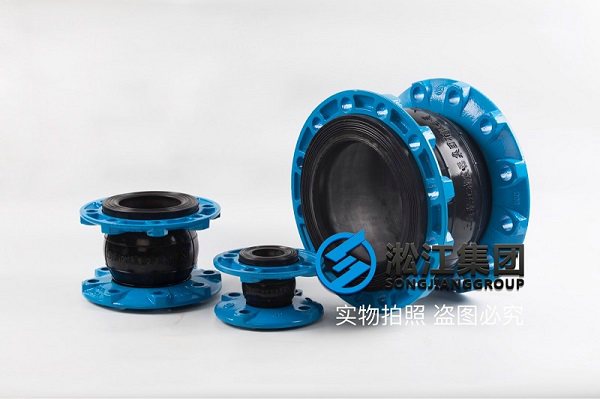

Shanghai Songjiang Group provides new ductile iron ANSI/ASME Flanged Rubber Bellows for many customers

Name: [Patented] Ductile ANSI/ASME Flanged Rubber Bellow

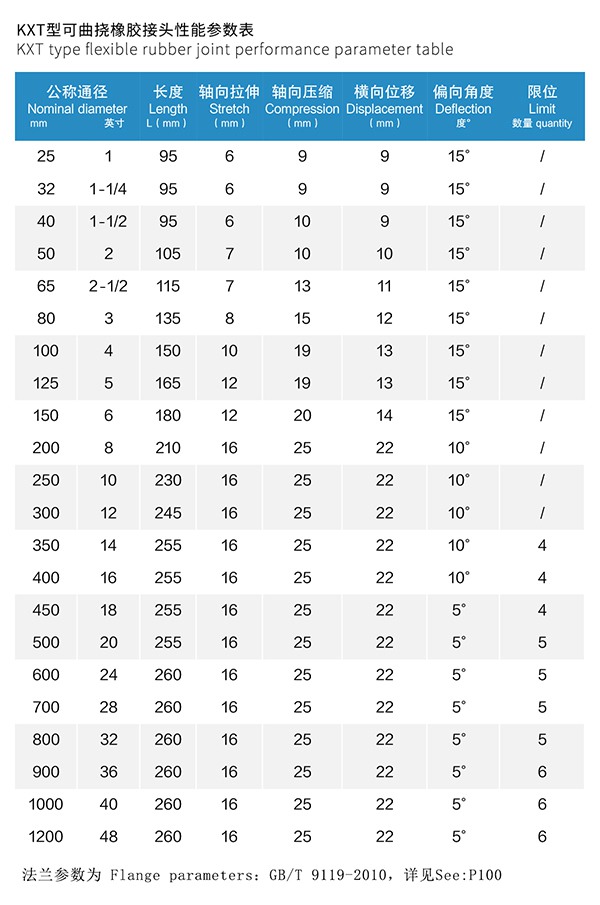

Norminal Diameter: DN25- DN1200
Pressure: 1.6Mpa
Length: 95mm- 260mm
Axial compression: 9mm-25mm
Axial tension: 6mm-16mm
Lateral displacement: 9mm-22mm
Deviation angle: 5- 15 degrees.
Flange material: carbon steel / ductile QT450 / stainless steel.
Flange standard: ANSI/ASME Flanged
Applicable media: weak acid and alkali, strong alkali, lime slurry, desulfurization, chemical plant sewage, high temperature below 120 degrees; (Note: strong acid and alkali, dilute sulfuric acid can not be used, to choose tetrafluororubber joint can be used.)
Advantages: shock absorption, noise reduction, protection of hydraulic equipment for long-term use, reduce maintenance costs.
Manufacturer: Shanghai Songjiang Group
