JB type blower base spring shock absorber
Shanghai Songjiang Group introduces to you: JB type blower base spring shock absorber product information, Shanghai Songjiang Group recommends the new JB type blower base spring shock absorber. This product is light and strong in appearance, easy to install, and has a 5-year warranty. The group has many years of production experience.
Introduction of JB type blower base spring shock absorber:
[Product name]: JB type blower base spring shock absorber
[Product brand]: Shanghai Songjiang Group
[Product Model]: JB-20~JB-1300
[Applicable environment]: construction, water supply and drainage, light and heavy industry, refrigeration, plumbing, fire protection, electricity, etc.
[Product Features]: Good shockproof effect and good shock absorption performance.

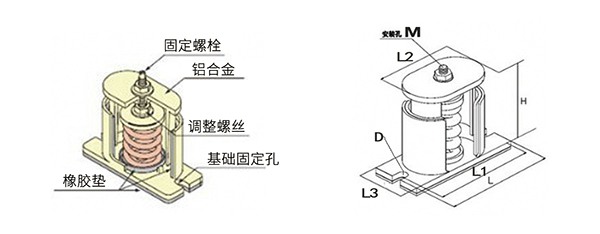

Structure of JB type blower base spring shock absorber
Parameters of JB type blower base spring shock absorber
JB type blower base spring shock absorber, also known as fan shock absorber, has the characteristics of simple structure and convenient installation. The upper and lower ends of the shock absorber have screws and screw holes, and the upper end of the spring has a height adjustment nut. Both ends of the shock absorber have lateral rubber damping, which increases the vertical damping coefficient, improves the longitudinal and lateral stiffness, and ensures that the equipment can run more safely.
JB type blower base spring shock absorber is made of high-strength ductile iron, which has the advantages of wide load range, low natural frequency and convenient installation. The upper part of the shock absorber is equipped with upper bolts to be fixed with the equipment, and the lower part can be fixed with the foundation: there are height adjustment bolts, which can adjust the level of the equipment, and the lateral damping is adopted to improve the stiffness of the longitudinal and lateral levels (damping ratio>0.065). The body material of JB type blower base spring shock absorber is divided into special reinforced nylon and spherical cast iron. .The special reinforced nylon material is nylon reinforced chemical fiber, with good strength; nylon material can resist acid and alkali, anti-ultraviolet, and has undergone strict aging test, with good quality and high safety. The spherical cast iron body is hot-dip galvanized for good weather resistance. The appearance is light and sturdy, and it is easy to install; it is suitable for all kinds of mechanical internal shock absorbers. The springs are all processed by heat treatment, ED anti-rust, paint and other procedures. The load deflection of 25mm and 40mm can effectively eliminate the vibration of the mechanical structure. The working temperature of nylon material is 0℃～50℃.
