[Elbow] ANSI/ASME Flanged Rubber Bellow “90 Degree”

[Elbow] ANSI/ASME Flanged Rubber Bellow 90 Degree

Due to the installation position of the equipment and the position of the inlet and outlet pipe bodies are deviated, and the usage in different scenarios, The [Elbow] ANSI/ASME Flanged Rubber Bellows 90 Degree no doubt the best solutions for it.



ANSI/ASME Flanged Rubber Bellows are also known as rubber joints, rubber soft connections, pipeline shock absorbers, ANSI/ASME Flanged Rubber Bellows, pipeline rubber bellows and rubber compensators. ANSI/ASME Flanged Rubber Bellow is a kind of comprehensive valve. It has different connection methods. There are many connection methods to meet the needs of customers. Different production materials can adapt to various harsh environments. ANSI/ASME Flanged Rubber Bellows are valves installed in pipes to reduce vibration between pipes by utilizing their flexible properties.

[Elbow] ANSI/ASME Flanged Rubber Bellows are generally composed of two sides metal flanges and smooth rubber spheres . One of them is the elbow ANSI/ASME Flanged Rubber Bellow. It absorbs the axial displacement of the passenger line through the flexible deformation of the bellows (there are also a small amount of lateral displacement and angular displacement)

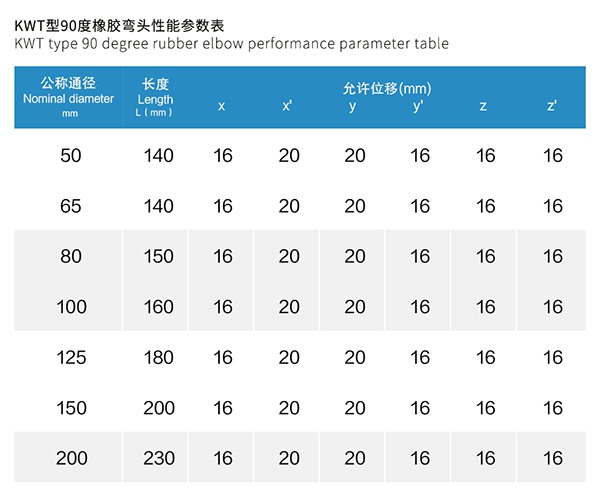

Product Name: [Elbow] ANSI/ASME Flanged Rubber Bellow
Norminal Diameter: 50mm-200mm
Outer/Inner Rubber: NR / NBR/ EPDM
Key Frame: Nylon Cord ( Nylon 6)
Pressurized Ring: Steel Wire Strand
Flange: Q235, Stainless Steel 304/316, PVC

[Elbow] ANSI/ASME Flanged Rubber Bellow is a kind of pipe joint with high elasticity, high air tightness, medium resistance and weather resistance. [Elbow] ANSI/ASME Flanged Rubber Bellow can solve the problem that metal pipes are not connected on a horizontal plane, and at the same time, it has the effect of shock absorption and noise reduction, which can save pipe installation parts and save costs. It consists of inner rubber layer, fabric reinforcement layer, middle rubber layer, outer rubber layer, end reinforcement metal ring or steel ring, and metal flange. It has the advantages of high pressure resistance, good elasticity, large displacement, balancing pipe deviation, absorbing vibration, good noise reduction effect, and convenient installation. The factory of Songjiang Group uses high-quality natural rubber to produce rubber elbows with strong elasticity, which have good shock absorber effect and long service life, and solve the problem of easy vibration and damage for vertically intersecting pipelines.
