Shanghai Songjiang Group Introduce to you: Shanghai Songjiang Group Not Only Manufacture ANSI/ASME Flanged Rubber Bellow, But also produce German standard DIN Single Sphere Rubber Bellow. The product is small in size, simple in structure, easy to install and maintain, suitable for many fields.Following is detailed introduction.

[DIN] Single Sphere Rubber Bellow “German Standard”

Introduction of German standard DIN Single Sphere Rubber Bellow:

[product name]: German standard DIN Single Sphere Rubber Bellow
[product brand]: Shanghai Songjiang Group
[Product Model]: DN25~DN2800
[Applicable environment]: construction, water supply and drainage, light and heavy industry, refrigeration, plumbing, fire protection, electricity, etc.
[Product Features] : Simple structure, easy installation, good shock absorption effect, etc.
[Rubber material]: EPDM rubber, oil-resistant rubber, high temperature-resistant rubber, natural rubber, etc. can be customized according to customers
[Flange material]: ductile iron, stainless steel 304, carbon steel, forging, PVC flange, etc. can be customized according to customers

German standard DIN Single Sphere Rubber Bellows have many names: flexible rubber shock-absorbing joints, rubber soft connections, soft joints, flexible rubber shock-absorbing joints, rubber expansion joints, shock-absorbing throats, shock absorbers, etc. A pipe connection with high elasticity, high air tightness, medium resistance and weather resistance.

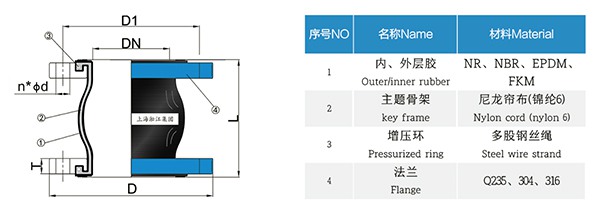

The German standard DIN Single Sphere Rubber Bellow is composed of inner and outer layers of rubber, ply and steel ring to form a tubular rubber part, which is then vulcanized and formed and then loosely combined with metal flanges or parallel joints. This product can reduce vibration and noise, and can compensate for thermal expansion and contraction caused by temperature changes, and is widely used in various piping systems. Product features: small size, light weight, good elasticity, easy installation and maintenance.

After installation, it can absorb the lateral, axial and angular displacement caused by the vibration of the pipeline; it is not limited by the non-concentricity of the pipeline and the non-parallel flange. After installation, it can reduce the noise generated by the vibration of the pipeline water pump, etc., and has a strong vibration absorption capacity.

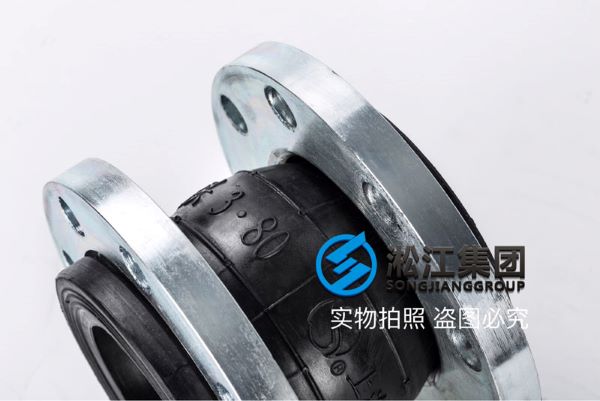

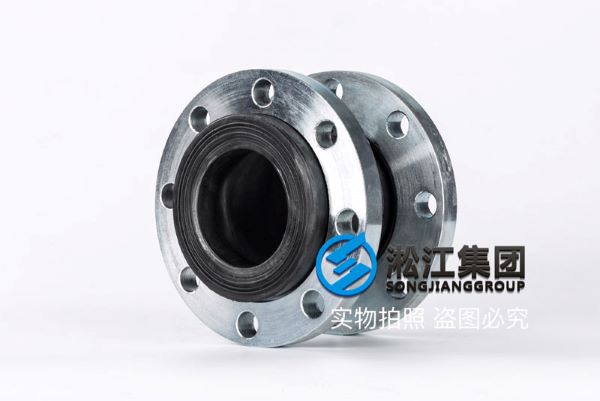

German standard DIN Single Sphere Rubber Bellow physical photo:

Songjiang Group mainly produces noise reduction products for pipeline equipment such as rubber shock-absorbing joints, metal hoses, spring shock absorbers, etc. It has many years of production experience and many authoritative qualification certificates.
