[Concentric Reducer] ANSI/ASME Flanged Rubber Bellow

[Concentric Reducer] ANSI/ASME Flanged Rubber Bellow

Shanghai Songjiang Group Introduce to you: Concentric ANSI/ASME Flanged Rubber Bellows  with different diameters can solve the problem of different diameters when connecting metal pipes, and at the same time have the effect of shock absorption and noise reduction.

Concentric Reducer ANSI/ASME Flanged Rubber Bellow are used in many water supply and drainage projects, central air conditioning pump room units, chemical enterprises, ships, fire engineering, pharmaceuticals and other industries.

Concentric Reducer Pipeline ANSI/ASME Flanged Rubber Bellows products are mainly used in pipes with different diameters or requiring reduced diameter connections. The maximum pressure upto 1.6MPa , It has good elasticity, large displacement, low resonance noise of pipeline units, easy installation, compensation for pipeline displacement, and a good make up for the gap of large-scale different-diameter pipeline connections in the industry.

Mediu selection:
Neoprene (CR) Corrosion Resistant
Nitrile rubber (NBR) oil resistant
EPDM/EPDM acid and alkali resistant
Fluorine rubber (FPM) high temperature resistance

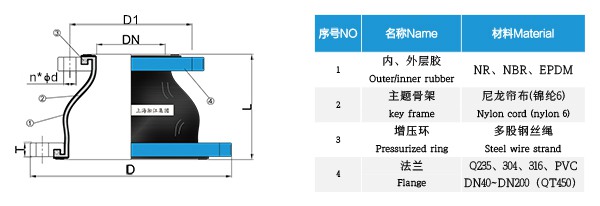

The main feature is that it can solve the problem of different diameters when connecting metal pipes, and at the same time, it has the effect of shock absorption and noise reduction, which can save pipe installation parts and save costs. It is composed of inner rubber layer, nylon cord reinforced rubber sphere and loose metal flange. It has the characteristics of high pressure resistance, good elasticity, large displacement, balanced pipeline deviation, vibration absorption, good noise reduction effect, and convenient installation. It can be widely used in water supply and drainage, circulating water, HVAC, fire protection, papermaking, pharmaceuticals, petroleum Chemical, ships, pumps, compressors, fans and other piping systems. The ordinary type is used to transport air, compressed air, water, seawater, oil, acid, alkali, etc. at -15℃～120℃. The special type is used to transport the above-mentioned medium or oil, concentrated acid and alkali, and solid materials above -30℃～250℃.

Scope of use
Reducer ANSI/ASME Flanged Rubber Bellow are widely used in various medium pipelines in construction water supply and drainage projects, central air-conditioning pump room units, chemical enterprises, ships, fire engineering, pharmaceuticals and other industries. Concentric ANSI/ASME Flanged Rubber Bellow with different diameters can solve the problem of different diameters when connecting metal pipes, and at the same time have the effect of shock absorption and noise reduction, which can save pipe installation parts and save costs. It has the characteristics of high pressure resistance, good elasticity, large displacement, balanced pipeline deviation, vibration absorption, good noise reduction effect, and convenient installation.
