Shanghai Songjiang Group Introduce to you: Clamp Type Rubber Bellow，Instead of ANSI flanged rubber bellows are used for pipeline vibration isolation, noise reduction and displacement compensation joints. It is a high elasticity, high air tightness, medium resistance and weather resistance rubber bellow.



Clamp Rubber Bellow are generally used in low-pressure pipeline systems such as oil return pipelines, drainage pipelines, and powder transportation system, pressure not higher than 1kg, diameter, length, thickness, material (high temperature, hydraulic pressure, food)

Use clamp type joints instead of flanges and anchor bolts. In application, the two pipes of the Rubber Bellow of the clamp can be easily put on the pipeline to be connected, and the flexible rubber joint can be fixedly connected to the pipeline according to the clamped joint; and achieve the purpose of compensating for the offset caused by the expansion of the pipeline due to thermal expansion and contraction and the passage of water.

According to the specific working conditions, different machinery and equipment should be used for installation. Rubber Bellow It occupies a major part in the industrial pipeline and has great influence. Because of its own advantages and characteristics, it is favored by customers.

Compared with ordinary Rubber Bellow, it has the following characteristics:
1. The clamp Rubber Bellow saves flanges and anchor bolts and saves the expenditure of engineering projects.
2. The branch pipe of the clamp Rubber Bellow does not need the reverse side, which simplifies the manufacturing process of the Rubber Bellow and saves the raw material.
3. The clamp Rubber Bellow simplifies the installation and maintenance work and improves the work efficiency.

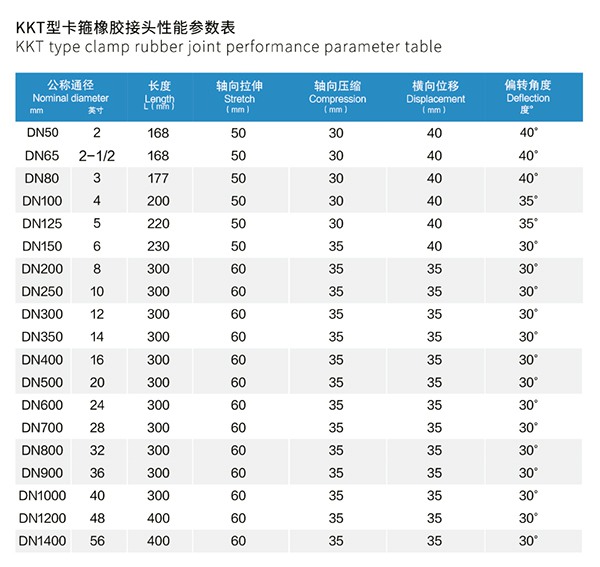

4. The clamp joint is made of stainless steel and has the characteristics of anti-corrosion. The pipe diameter is from DN50-DN400, and the working pressure level is from 0.25mpa-1.0mpa.
