BGF type fire pipeline stainless steel corrugated compensator
Author:Songjiang group Time:2022-6-27

BGF type fire pipeline stainless steel corrugated compensator

Quick Details

BGF type fire pipeline stainless steel corrugated compensator

Shanghai Songjiang Group introduces to you: BGF type stainless steel corrugated compensator for fire fighting pipeline product information, Shanghai Songjiang Group  recommends the new BGF type stainless steel corrugated compensator for fire fighting pipeline.

BGF type fire pipeline stainless steel corrugated compensator

Introduction of stainless steel corrugated compensator for BGF fire pipeline:

[Product name] : BGF type fire pipeline stainless steel corrugated compensator
[Product brand] : Songjiang Group
[Product Model] : DN32~DN1900
[Applicable environment]: construction, water supply and drainage, light and heavy industry, refrigeration, plumbing, fire protection, electricity, etc.
[Product Features]: Simple structure, easy installation, quality assurance, high pressure
[Flange material]: carbon steel flange
[corrugated material]: stainless steel 304

BGF type fire pipeline stainless steel corrugated compensator is also called expansion joint, or expansion joint. It consists of a bellows (a kind of elastic element) that constitutes the main body of its work, and accessories such as end pipes, brackets, flanges, and conduits. Mainly used in various pipelines, it can compensate the thermal displacement of the pipeline, mechanical deformation and absorb various mechanical vibrations, which can reduce the deformation stress of the pipeline and improve the service life of the pipeline. Stainless steel corrugated compensator is a compensating device used to absorb the dimensional changes of pipelines, conduits or containers caused by thermal expansion and cold contraction by using the effective expansion and contraction of the elastic element of the corrugated compensator. It belongs to a compensating element. Absorbs axial, lateral, and angular displacements.

Material description of stainless steel corrugated compensator for BGF fire pipeline: Corrugated pipe body: In order to have a longer service life, all stainless steel 304 material is used to support the detection of various spectrometers, and the thickness is all thicker than the industry standard.
Connecting ANSI flanges: The flanges are all made of authentic Shanxi forged materials, both in terms of strength and sealing, and are of good quality. Do not compare the cast steel and steel plate steel flanges on the market, there is no comparability.
Welding consumables: All the welding consumables are higher than the base metal grade standard, so that the welding point is firmer.
Limiting lugs: The lugs are all produced in enlarged and thickened sizes. Each model can be compared one-to-one with the same model in the same industry. This is the so-called no comparison, no harm.
Limit screw: The screw is all made of 8.8 grade high-strength galvanized. In order to ensure the comprehensive strength of the product, it is meaningless not to compare with the 4.8 grade on the market.

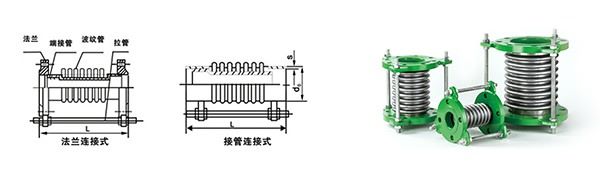

BGF type fire pipeline stainless steel corrugated compensator structure:

BGF type fire pipeline stainless steel corrugated compensator

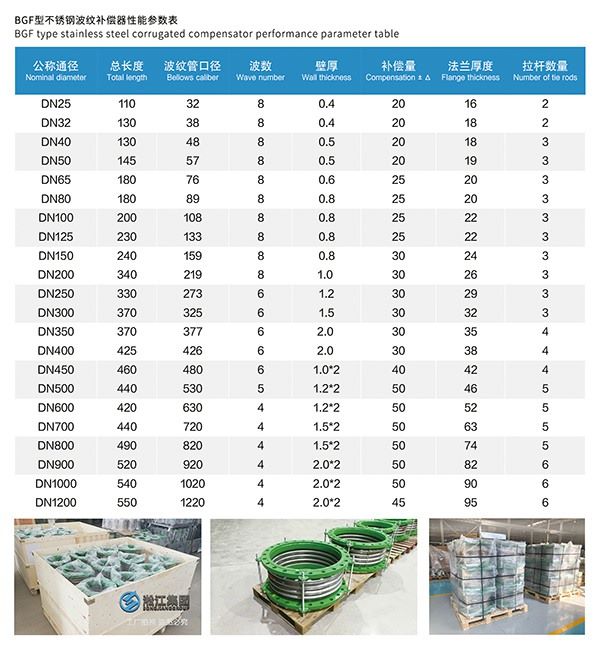

BGF type fire pipeline stainless steel corrugated compensator technical parameters:

BGF type fire pipeline stainless steel corrugated compensator

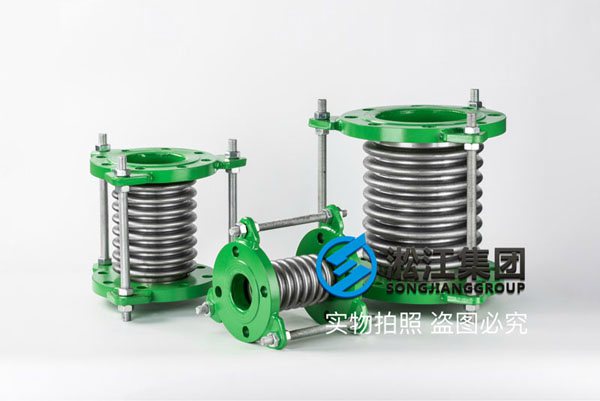

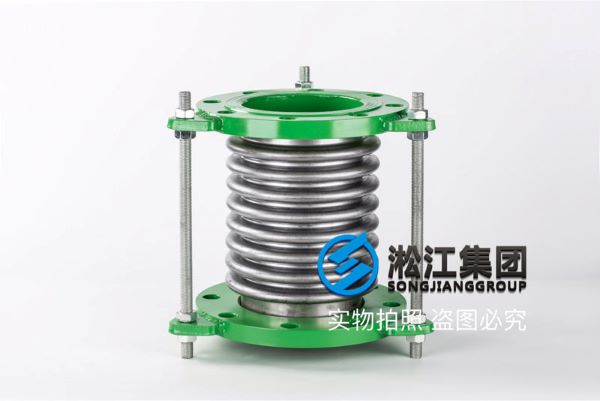

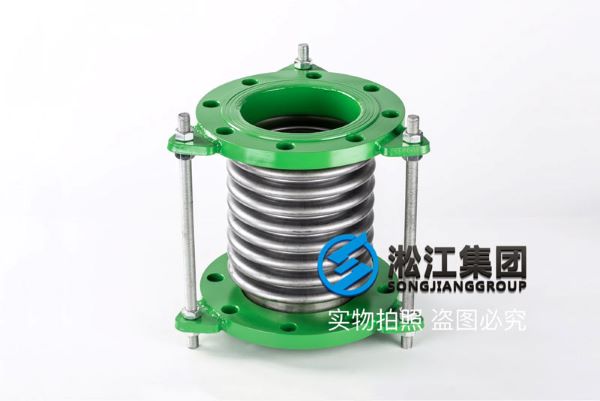

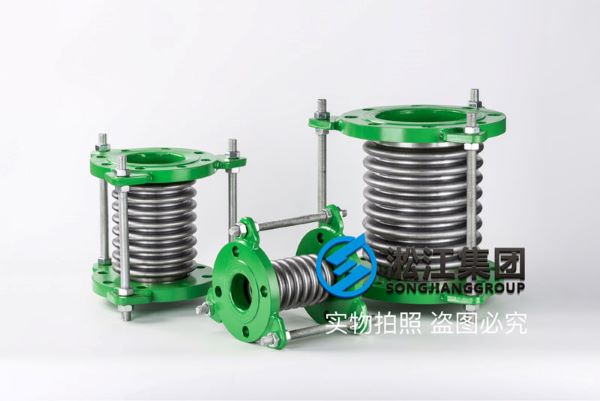

BGF type fire pipeline stainless steel corrugated compensator physical photo:

BGF type fire pipeline stainless steel corrugated compensator

BGF type fire pipeline stainless steel corrugated compensator
