Songjiang Ansi rubber bellows in converter stations to reduce vibration of converter valve equipment
Songjiang group Time:2024-6-1

Songjiang Ansi rubber bellows in converter stations to reduce vibration of converter valve equipment

Quick Details

Contact Us

The official website of Shanghai Songjiang Group introduce to you: Guangdong Province Zhaoqing Converter Station Project purchased ansi rubber bellow contract information, Songjiang Group provides high-quality ansi rubber bellows for many converter station projects in Guangdong Province, the following is a detailed introduction.We would be glad to support our valuable customers at their projectss with our high-quality services.

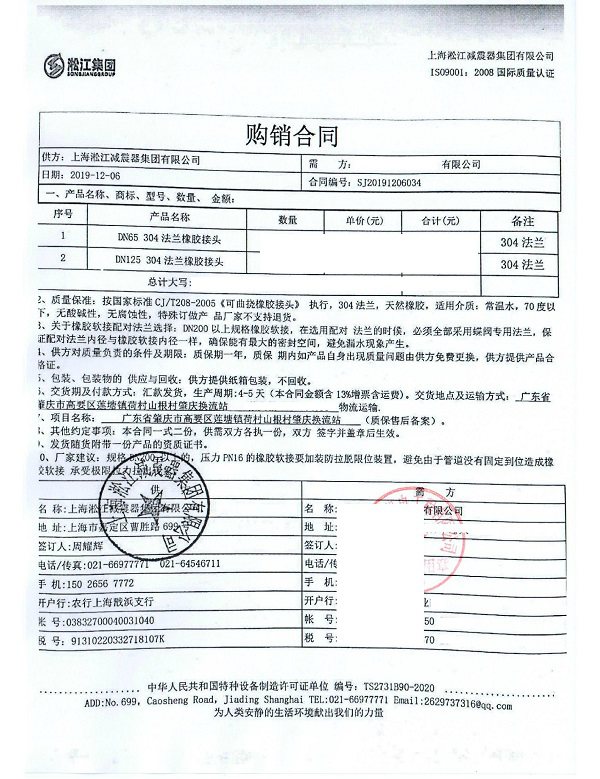

The scanned copy of the contract of ansi rubber bellows in converter stations to reduce vibration of converter valve equipment:

Songjiang Ansi rubber bellows in converter stations to reduce vibration of converter valve equipment

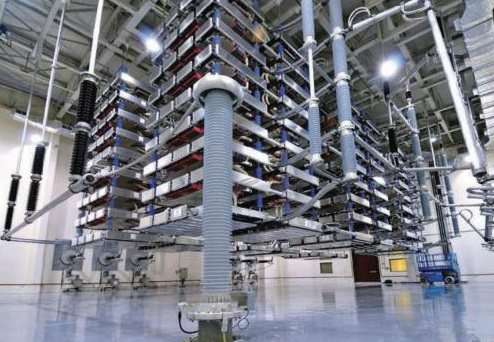

Zhaoqing Converter Station is the receiving-end inverter station of the ±500kV Guiguang primary DC transmission system. Zhaoqing Converter Station has been operating stably since it was completed and put into operation, and has maintained a high-load power transmission level. As of December 2017, a total of 175.82 billion kWh of electricity has been transferred. A converter station refers to a station established in a high-voltage direct current transmission system to complete the conversion of alternating current to direct current or direct current to alternating current, and to meet the requirements of the power system for safety, stability and power quality.

Songjiang Ansi rubber bellows in converter stations to reduce vibration of converter valve equipment

The main equipment or facilities that should be included in the converter station are: converter valve, converter transformer, smoothing reactor, AC switchgear, AC filter and AC reactive power compensation device, DC switchgear, DC filter, control and Protective devices, off-station grounding electrodes, and telecommunication systems, etc. The control regulation and protection system of the converter station realizes the following functions: stop and send DC power, control the direction of the power flow, adjust the quantity of the power flow and other electrical parameters, deal with and limit the abnormal operation of the converter valve and the interference caused by the AC and DC systems The impact caused, the protection of the equipment of the converter station, and the monitoring of various parameters of the converter station. The operating performance and safety and reliability of the converter station and DC transmission system are closely related to the performance and reliability of the control and regulation system, and have an important impact on the operation of the entire power system. Therefore, the control, regulation and protection system of the converter station is the intelligent part of the converter station, and its development trend is to adopt microcomputer technology.

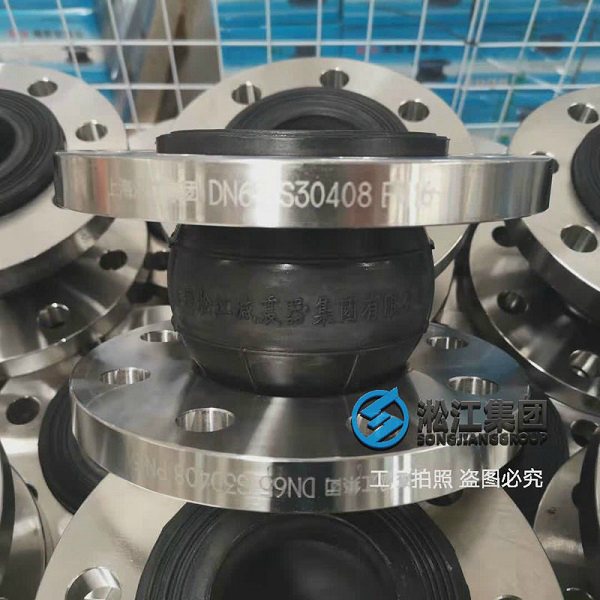

The following are pictures of the actual products of ansi rubber bellows in converter stations to reduce vibration of converter valve equipment:

Songjiang Ansi rubber bellows in converter stations to reduce vibration of converter valve equipment
